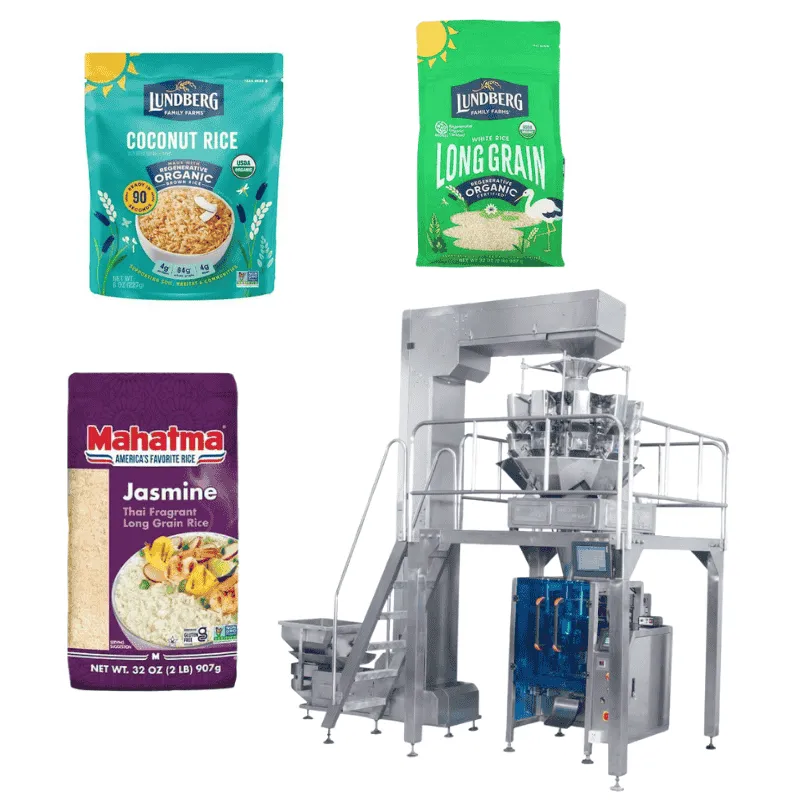

5KG Automatic rice packing machine 1kg rice pouch filling machine
The feactures of the automatic feeding ,weighing and packing machine
1)This machine has an imported PLC automatic program control, easy operation.
2) Famous brands configurations, high work efficiency, works stable.
3)Safety protection and alarm function that effectively prevents incorrect packaging.
4)Adjustment of bag deviation just needed to be controlled by the touch screen.
5)All control is realized through software, easy for function adjusting and technical upgraded.
Product advantages：
*The whole system,combine with material elevetor,multi-head weighter,platform,aotom,automatic packing machine,and finished products conveyor.
*Sutable for weighting and filling granular products of food and industrial.
*Control by PLC,touch screen HMI ,let operation direct and simple.
*Have 10 heads,14 heads,16 heads and 20 heads weighter,are available and suitable for different packing needs.
(Standard export wooden cases.)
| Model | BS-420 |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300mm |
| Packing speed | 10-70 bags/ min |
| Power | 2.2 KW |
| Air/ gass consumption | 0.65 Mpa, 0.3 m³/ min |
| Machine weight | 600 kg |
| Dimensions | 1080(L)* 1300(W)1400(H) mm |
| Packing film materials | OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc. |
