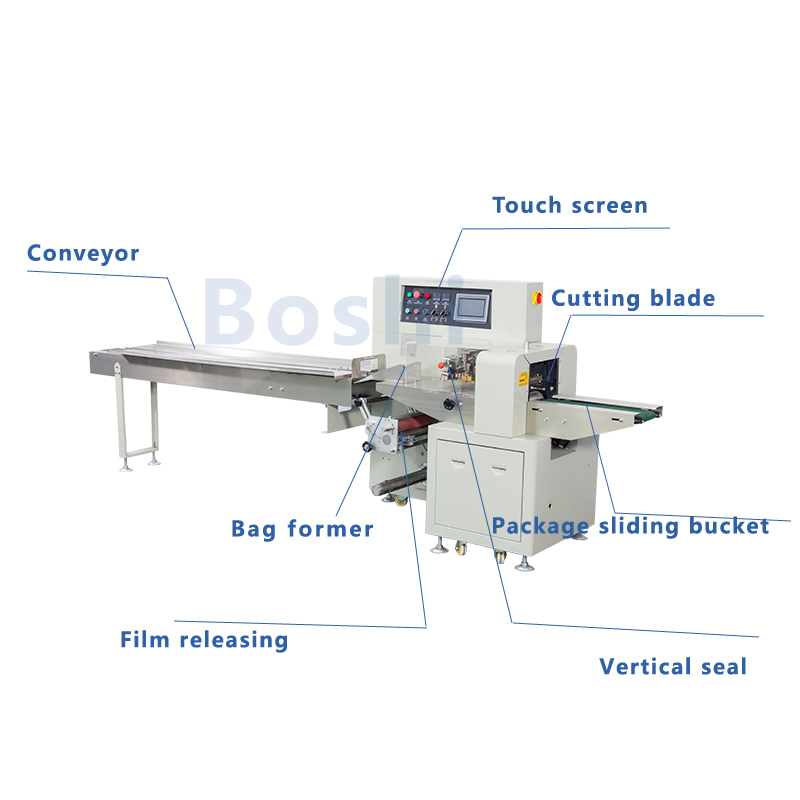

Automatic plastic bag fruit and asparagus vegetable packing machine flow pack machine

The advantage of three servo motor vegetable flow pack packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.

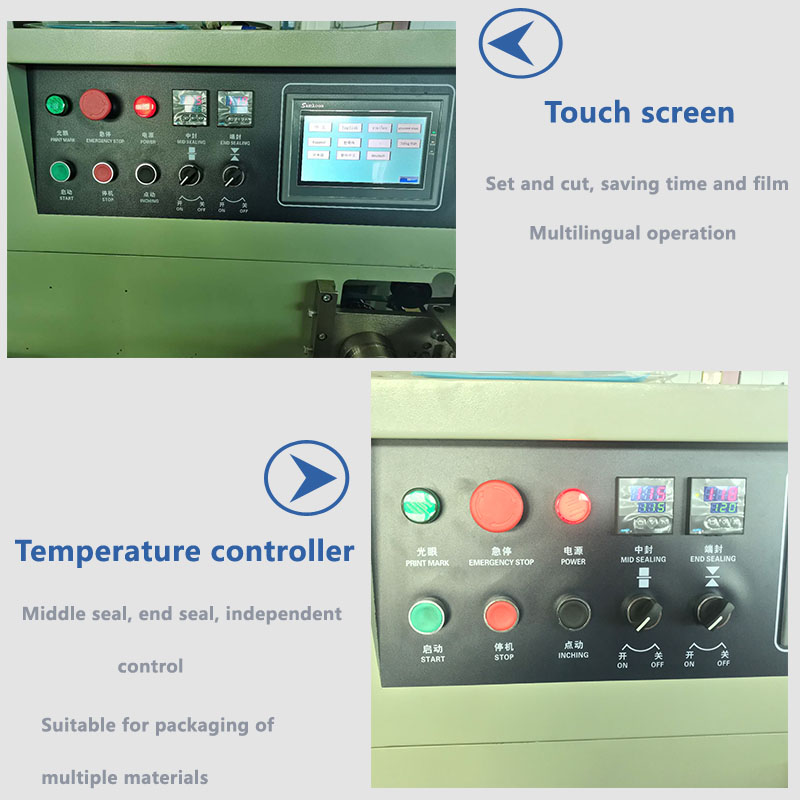

2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.

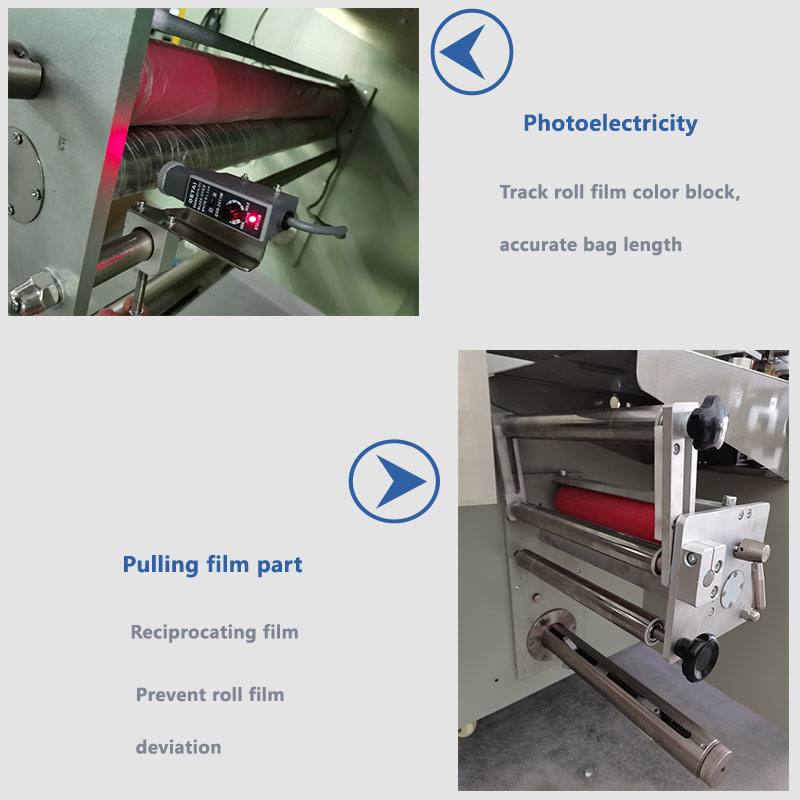

4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.




Automatic plastic bag fruit and asparagus vegetable packing machine flow pack machine




 (Vegetable pillow packing machine, suitable for vegetables, fruit, bread, and etc.)







300x200

300x200

300x200

300x200


300x200




(such as laminated film, ((PET/ PE, OPP/CPP,OPP/ CE)), paper.
vegetable packing machine


Option Device





CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.












(Standard export wooden cases.)
Model BS-350X
Film width Max.350mm
Film thickness 0.03-0.1mm
Bag width 50-160 mm
Bag length 65-190 mm, 90-220mm, or 150-330 mm
Product height 40-60 mm
Packing speed 40-180 bags/ min
Power 2.6 KW
Machine dimensions 4020*770*1450 mm
Machine weight 680 kg
Option devices Date printer, hole puncher, label machine
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
