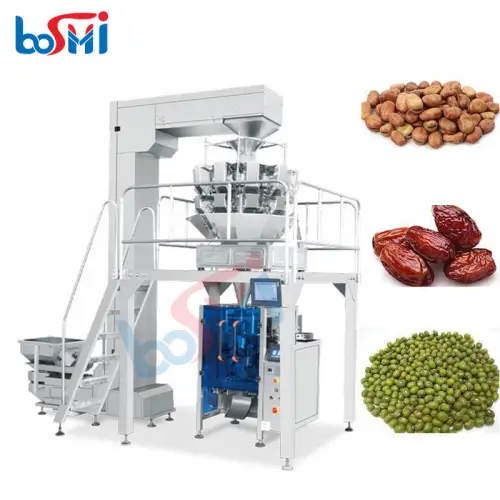

Boshi pack CE automatic beans packing machine for granular products

1.This machine has an imported PLC automatic program control, easy operation.
2. Famous brands configurations, high work efficiency, works stable.
3. Safety protection and alarm function that effectively prevents incorrect packaging.
4.Adjustment of bag deviation just needed to be controlled by the touch screen.






Boshi Pack CE Automatic Beans Packing Machine For Granular Products

►Applicaton:
Suitable for packing all kinds of dry food, frozen food, such as potato chips, peanut, biscuit, chicken leg, fish, and etc.
beans packing machine
beans packing machine►Product Advantages:
1. The whole system,combine with material elevetor,multi-head weighter,platform,aotom,automatic packing machine,and finished products conveyor.
2. Sutable for weighting and filling granular products of food and industrial.
3. Control by PLC,touch screen HMI ,let operation direct and simple.
4. Have 10 heads,14 heads,16 heads and 20 heads weighter,are available and suitable for different packing needs.


►Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bag dimension
3. Bag weight
4. Bag shape
Model BS-420
Film width Max.420mm
Film thickness 0.03-0.1mm
Bag width 50-200 mm
Bag length 50-300mm
Packing speed 10-70 bags/ min
Power 2.2 KW
Air/ gass consumption 0.65 Mpa, 0.3 m³/ min
Machine weight 600 kg
Dimensions 1080(L)* 1300(W)1400(H) mm
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
