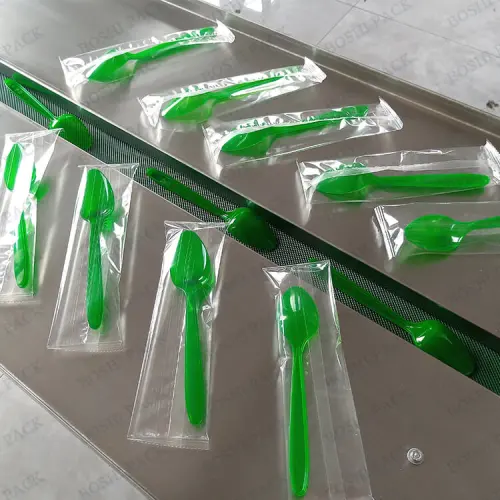

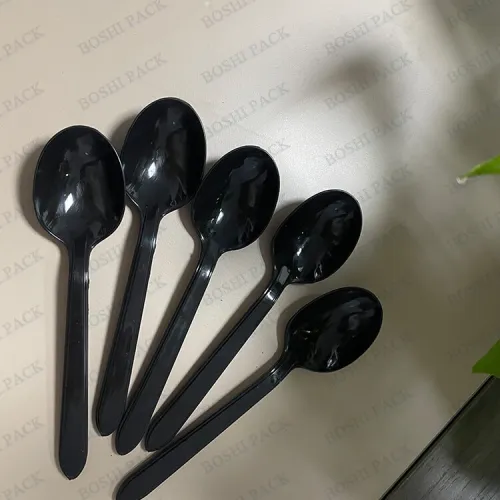

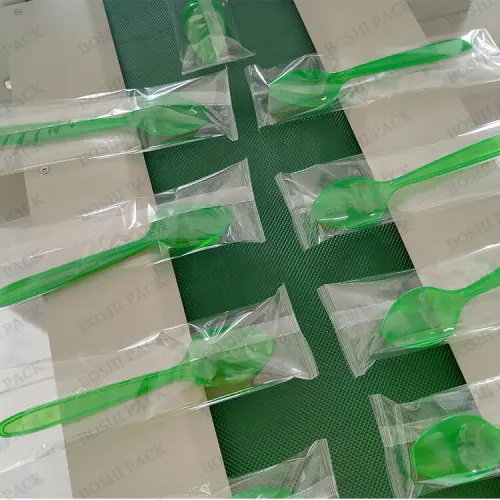

Boshi pack high quality automatic spoon packing machine manufacturer

The advantage of three servo motor face mask packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.
2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.




Boshi pack high quality automatic spoon packing machine manufacturer

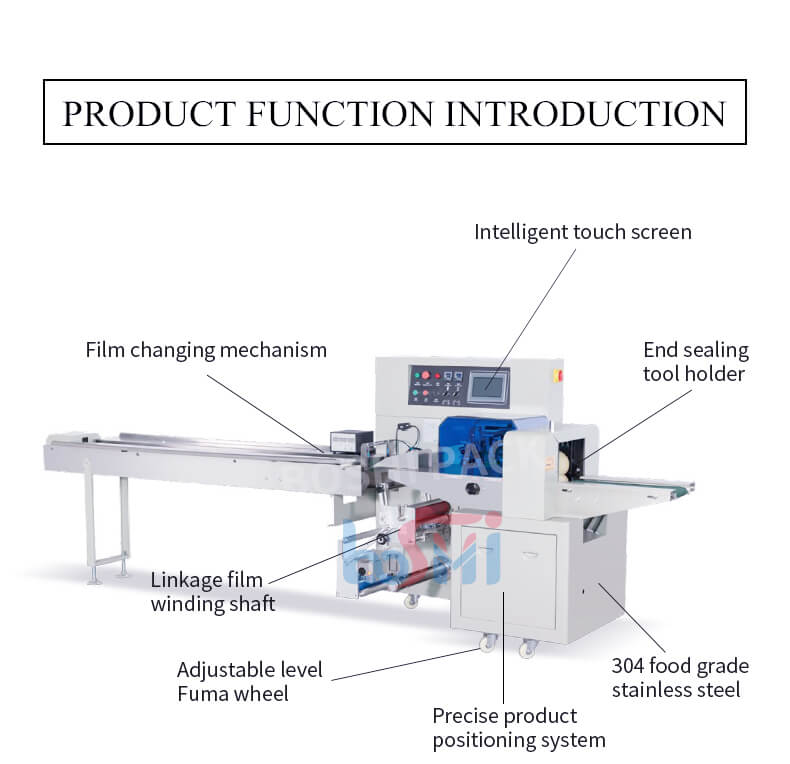

Product advantage:

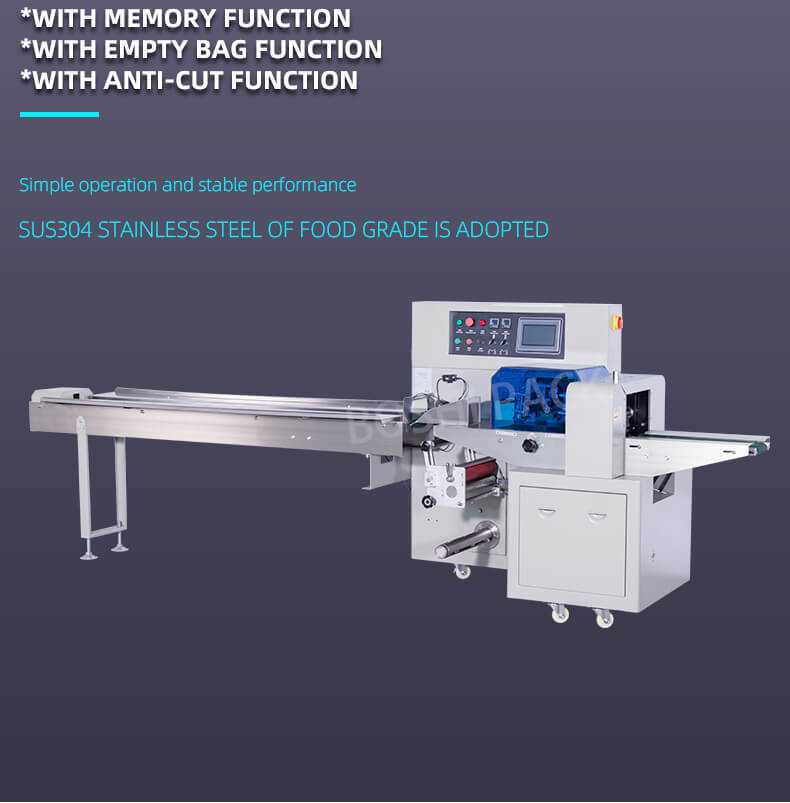

* Food grade SUS#304 contact parts

* Color touch screen 7", esay to look

* Withsafety guards
* Accurate length cutting

* With technical patent

* Easy to operate and clean

* Cutting can be change for different material

* Can be modified to servo control

* Only need 1 person to operate the machine, reduce labor costs

Product Applications:

suitable for bread packing, chocolate bar packing, sausage packing, popsicle packing, hardware packing, and etc.

140x140

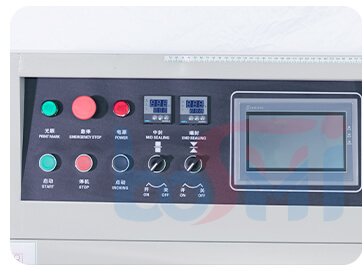

Touch screen


Easy setting and cutting Save time and

film Multi-langues for your choice

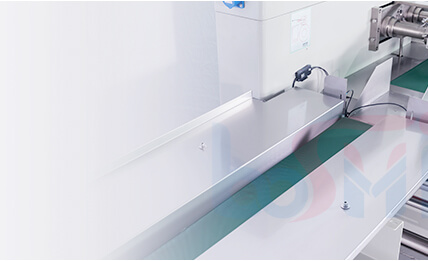

Feeding Conveyor

Sensor recognition put product on the belt casually

140x140

140x140

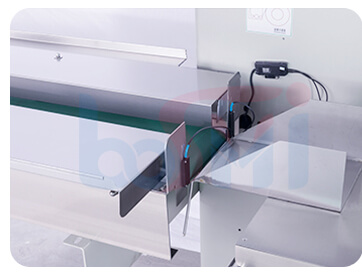

Through Beam Sensor


Auto identify product distance

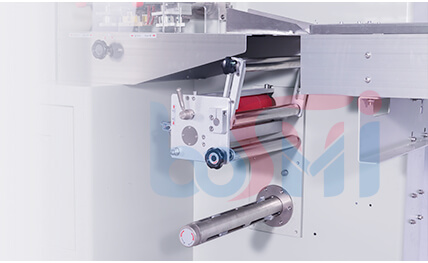

Mid-sealinf Parts


Independent PID temperature control Pull film Heater Lamination



140x140

140x140

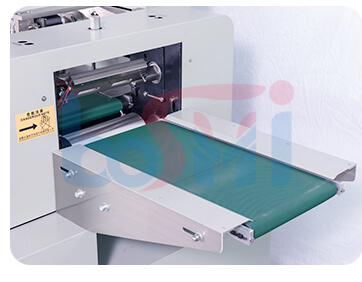

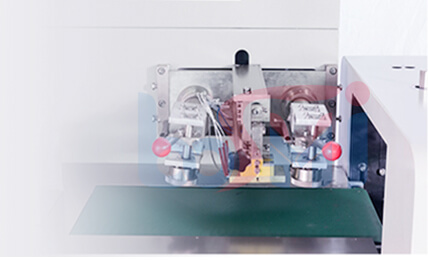

End-sealing Cutter


Rotary cutter with fast packing speed Sealing bag end




Photoelectric Sensor


Tracking eye mark on the film Cut bag according eye mark



140x140









Model BS-350X
Film width Max.350mm
Film thickness 0.03-0.1mm
Bag width 50-160 mm
Bag length 65-190 mm, 90-220mm, or 150-330 mm
Product height 40-60 mm
Packing speed 40-180 bags/ min
Power 2.6 KW
Machine dimensions 4020*770*1450 mm
Machine weight 680 kg
Option devices Date printer, hole puncher, label machine
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
