CE high speed automatic syringe packing machine for medical

The advantage of three servo motor face mask packing machine
1)Three servo motor version, high speed output, stable operation, saving time and film.
2)Interface features easy and quick setting and operation.
3)Self failure diagnosis, clear failure display.
4)High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5)Temperature independent PID control, more suitable for packaging different materials.
6)Positioned stop function, without sticking knife or wasting film.
7)Simple driving system, reliable working, convenient maintenance.
8)All control is realized through software, easy for function adjusting and technical upgraded.

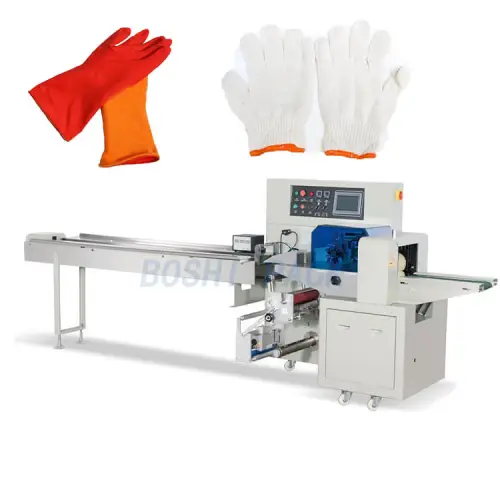

CE high speed automatic syringe packing machine for medical

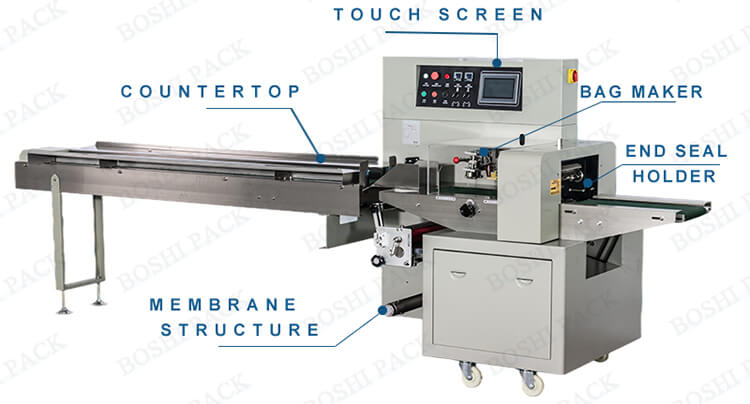

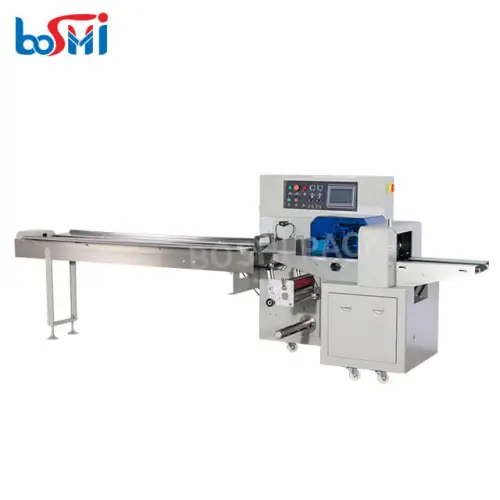

Packing machine outlook details.




Product advantages:

Self-fault diagnosis is available for clear fault display.
* The interface is easy and quick to set up and operate with high-precision structures.
* The three servo motor version of the pillow packaging machine has high-speed output to ensure stable operation, saving time and film.
* With PLC touch screen and fully automatic measuring, filling, bagging, date printing/nitrogen charge/string bags/easy tearing packing in one step, easy and accurate to set the bag length.

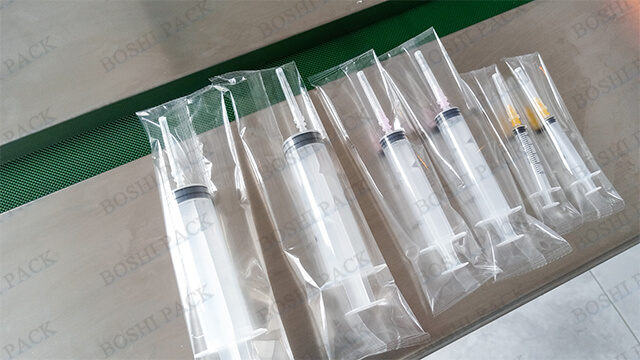

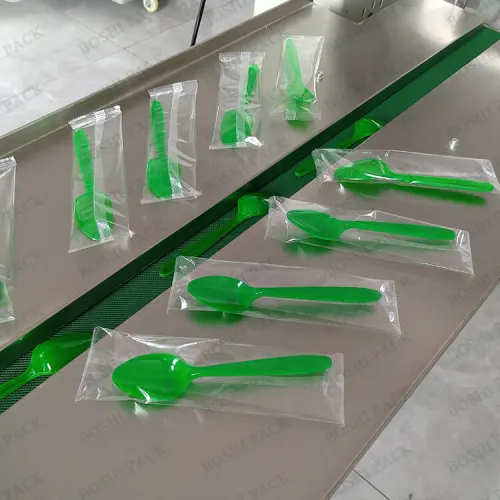

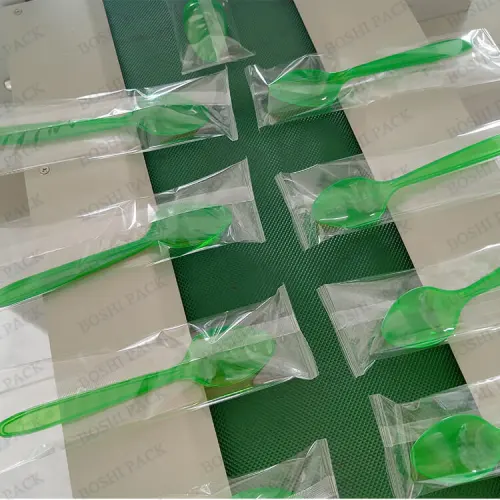

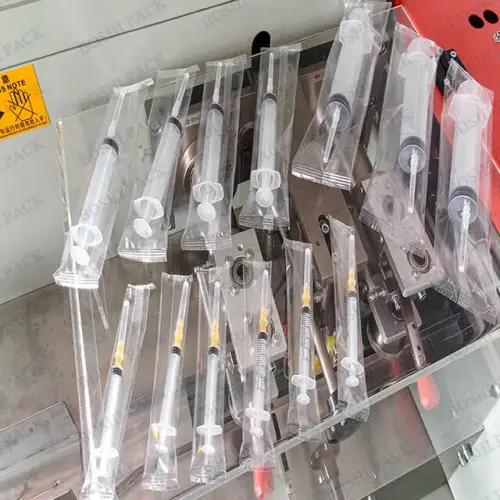

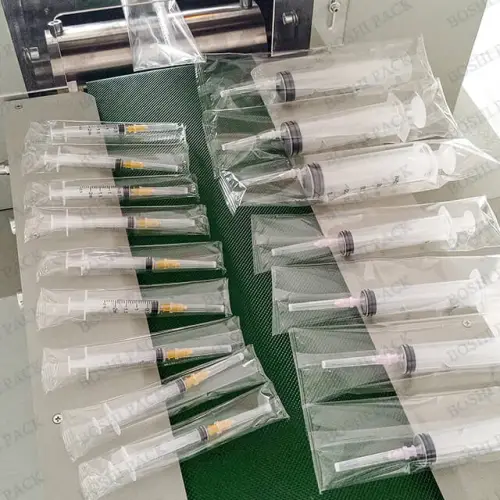

Packing samples:

Application:



suitable for packing food,hareware,fruit and vegetable,toy,medical ,dailly use and so on.






























Model BS-350X
Film width Max.350mm
Film thickness 0.03-0.1mm
Bag width 50-160 mm
Bag length 65-190 mm, 90-220mm, or 150-330 mm
Product height 40-60 mm
Packing speed 40-180 bags/ min
Power 2.6 KW
Machine dimensions 4020*770*1450 mm
Machine weight 680 kg
Option devices Date printer, hole puncher, label machine
Packing film materials OPP, CPP, OPP/PE, PET/ PE, Aluminum, and etc.
