rice packing machine | Automatic big weigher 25kg rice filling packing sewing machine

Big weigher rice bean filling sewing packing machine

1) It’s suitable for weighing material in bulk volume with high speed and high accuracy.
2) User-friendly HMI can be fast and easy take and store preselected weighing parameters for different weighing range.
3) Easy operating. The operator can simply put on the bag and touch switch then the feeding, filling and unloading bags can be completed automatically finished.
4) Controller and AD module are in CAN bus communication mode, independent weighing process carried out bye the AD module board, reducing controller communication time, make the weighing result feedback process more quickly.
5) Output ports use free port mode design, having a signal test function, easy to know about the equipment failure.
6) Detailed production records statistics functions.

Mechanical Character
1) The system use high-Precision load cell. AD converter module is with operating frequency of 400 times/s, which is high accuracy and good stability.
2) Three feeding level and special control algorithms make the weighing speed more quickly and higher accuracy.
3) Automatic entrainment structure, convenient artificial fix bags, it’s safe and more efficient.
4) Material contact parts are made of stainless steel, which is especially suitable for food industry make it more health, more environmentally friendly, easy to wash and maintain.

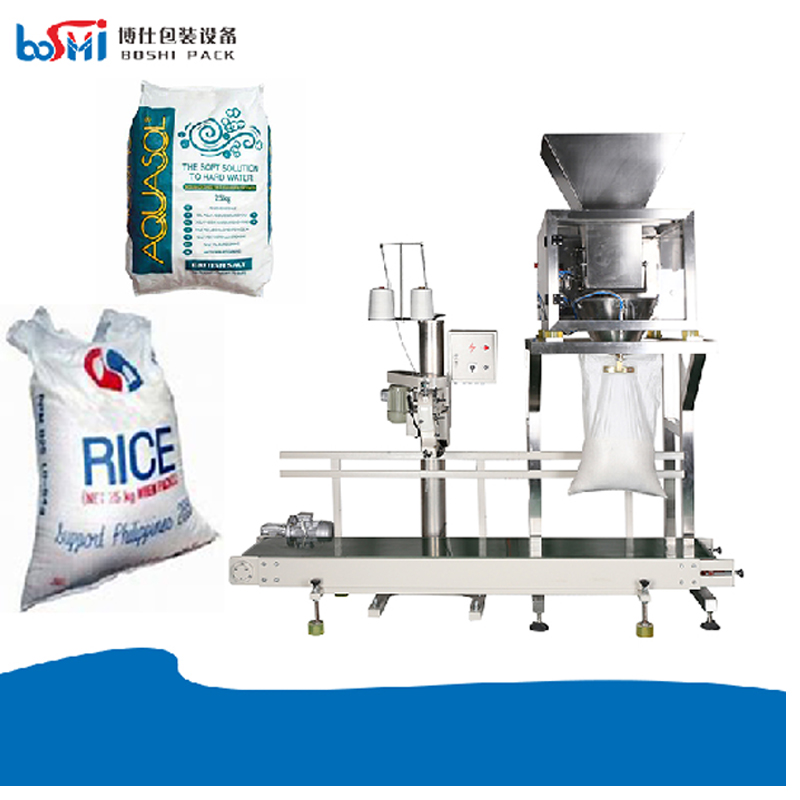

Automatic big weigher 25kg rice filling packing sewing machine
  rice packing machine

rice packing machine
rice packing machine

rice packing machine

CE, ISO, Google partner, Alibaba partner, and Chinese government certifications.


(Standard export wooden cases.)
Model BS-50
Max capacity 5-50 kg
Weighing accuracy (g) 10-50 g
Max weighing speed  7-11 bags/ min
Control panel 7'' touch screen
Options Conveyor belt/ bag sealer
Power requirement 220V / 2000W / 50/60HZ / 12A
Power Packing Dimension(mm) 1250(L)*1150(W)*2280(H)
Gross WGT 150 KG
